  Home > Product Center > Clear Floor
Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)　　(Optional color)

HY-LZL-M-2240

ASYMMETRIC ONE SIDE RELEASE CLEAR FLOOR LIFT

CHARACTERISTICS

1.Clear floor design, save space.

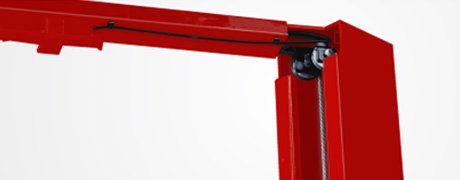

2.Adopt double cylinder, 4x4 higher and stronger chain, the wire rope balance system.
3.One side manual release.
4.Rubber pad door-opening protection.

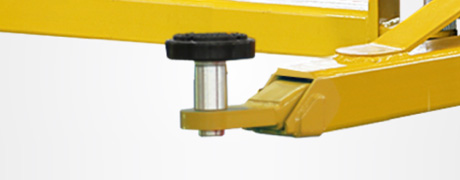

5.Rubber support with first, second and third level spiral to adjust the height.
6.Limit switch.

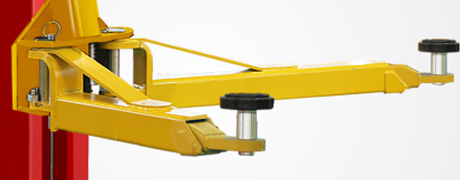

7.The arm adopts long and short arm design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation.

TECHNICAL SPECIFICATIONS

  • 4500kgLifting Capacity
  • 1900mmLifting Height
  • 120mmMin. Height
  • 2555mmPass Width
  • 2865mmColumn Width
  • 3650mmTotal Width
  • 50s-60sLifting Time
  • 2.2kw-380v or 2.2kw-220vMotor Power
  • 24MPaOil Pressure Rating
  • 730kgWeight

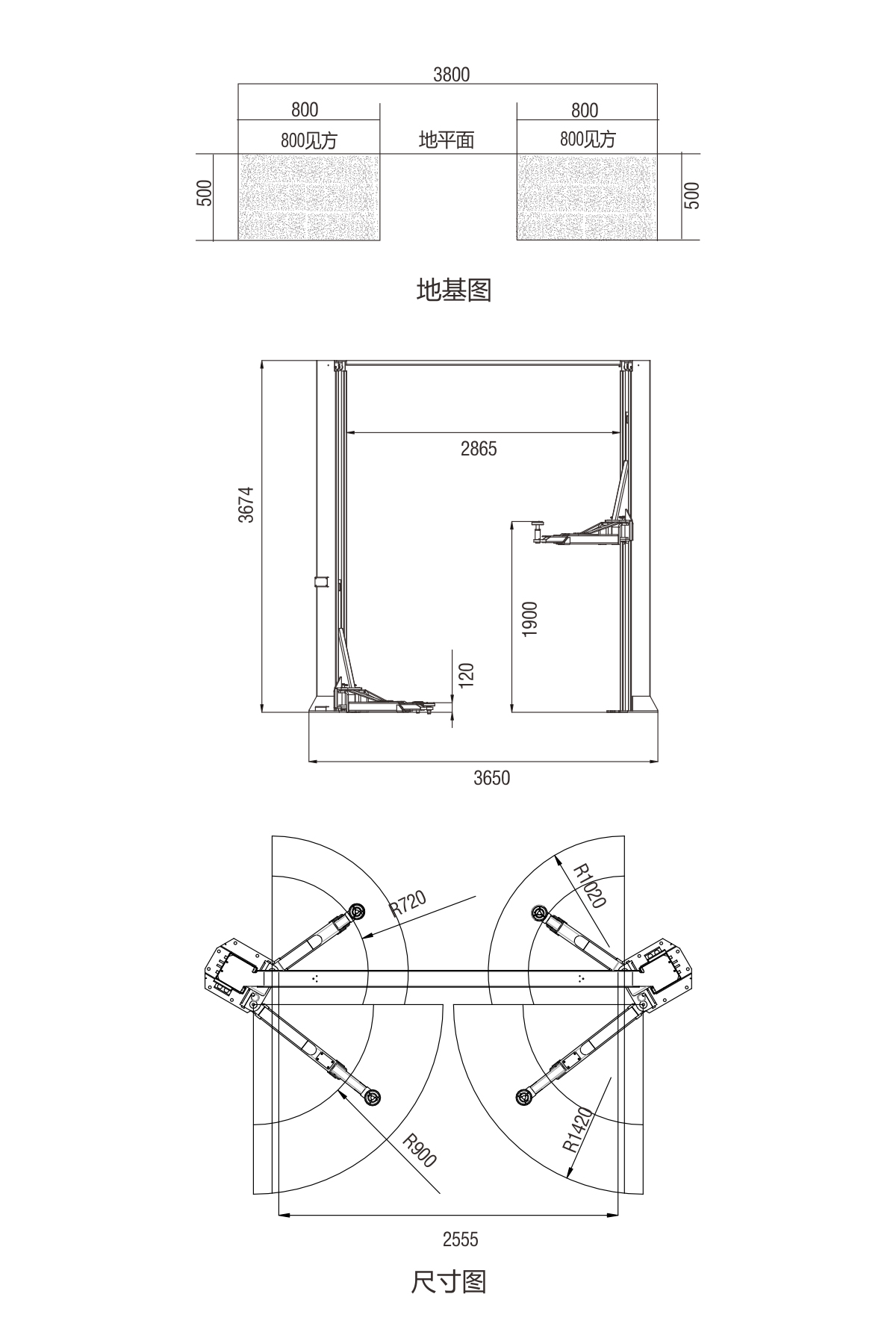

  DIMENSIONS (mm)
